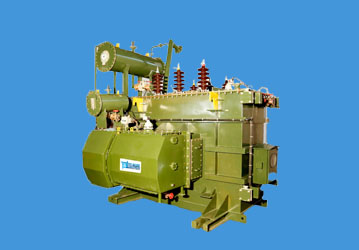

Power Transformer

All the transformers of rating above 5MVA and primary voltage class from 11kV to 66kV are conventionally termed as Power Transformers. These transformers are generally used for stepping down voltage in receiving stations in distribution network.
Click Here Download Catalogue





ASSURED FEATURES:
  • Highest dielectric insulation property to withstand lightening impulse.
  • Mechanical design to withstand short circuit forces arising during faults.
  • Optimum oven heating under vacuum as to achieve desired compression height and maximum insulation resistance (IR) to windings.
  • Adequate ducts between layers, coils, discs for maximum oil flow and reduced hot spot temperature.
  • Step-lap designed CRGO laminations for lower losses and excitation current.
  • Pre compressed Insulation material for minimal moisture absorption.
  • Permawood rings for uniform clamping.

TECHNICAL SPECIFICATIONS

Ratings UPTO 20 MVA
Voltage Class UPTO 66 kV
No of Phases 3 Phase
Frequency; 50/60 Hz
Applicable Standards IS 2026, IEC 60076, ANSI, IEEEE
Insulating Fluid PCB FREE Mineral Oil, both inhibited & uninhibited, as per IS/IEC and customer requirement, ASTM D-3487.
Class of Insulation Class A
Tap Changer OFF CIRCUIT TAP CHANGER, OFF LOAD TAP CHANGER, as per customer requirement
